Cooling Plates - (Various Sizes)
In stock
Catalog
282-G

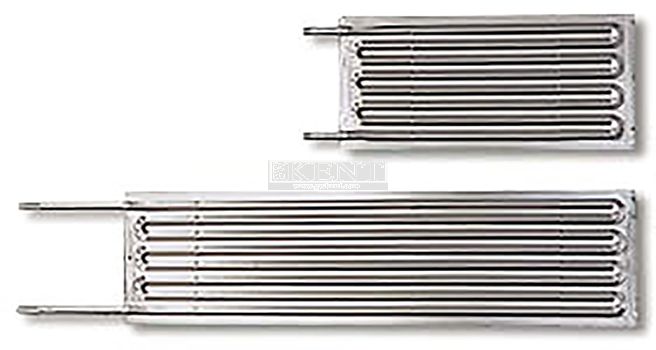

Cooling plate in 304 stainless steel for placement inside wine tank or bin for temperature control. Cannot be used inside pressure tanks.
Benefits of using cooling plates:
- Fermentation temperature control: Keep fermentation temperatures in the ideal range to protect yeast and preserve aromas.
- Cooling red must: Manage must and cap temperatures during red wine fermentation.
- Cold soaking: Chill crushed grapes before fermentation to help extract color and flavor.
- Cold stabilization: Chill finished wine to reduce tartrate crystals before bottling.
- Tanks without cooling jackets: Add cooling to standard tanks, totes, and bins without investing in jacketed equipment.
|
Plate Measurment |
2 Pipe Distance | Cooling Surface |
| 8.9" x 23.6" | 5.9" | 0.27 sq. meter |
| 8.9" x 31.5" | 5.9" | 0.36 sq. meter |
| 8.9" x 39.4" | 5.9" | 0.45 sq. meter |
| 12.8" x 23.6" | 9.9" | 0.39 sq. meter |
| 12.8" x 31.5" | 9.9" | 0.52 sq. meter |
| 12.8" x 39.4" | 9.9" | 0.65 sq. meter |
| 12.8" x 47.3" | 9.9" | 0.78 sq. meter |
| 16.9" x 31.5" | 13.9" | 0.69 sq. meter |
| 16.9" x 39.4" | 13.9" | 0.86 sq. meter |
| 16.9" x 47.3" | 13.9" | 1.03 sq. meter |
• Operating pressure: 30 psi or lower
• Pipe Lengh: 11.8" 1/2" BSP male & Hose Barb 1/2"
• Can not be used inside pressure tank.
