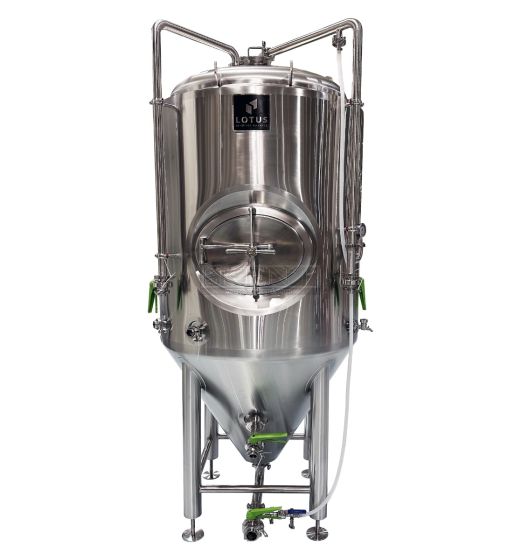

20 BBL Fermenter (Jacketed) - SCRATCH
This 20 bbl fermenter has a scratch on the underside/backside within the cradle area. This is a cosmetic blemish and does not affect the functionality of the tank.
Constructed to withstand years of demanding use, this stainless steel features a pickled and passivated interior for long-term durability. Precision welding and polished surfaces ensure compliance with the strictest sanitary requirements. Comes complete with all the parts you will need to start brewing, except solenoid valves and tank temperature controllers.
Note: This tank is too tall to ship LTL on a pallet, it must ship on a dedicated truck. Please contact us directly to request a freight quote.
This fermenter has a scratch on the underside/backside within the cradle area. This is a cosmetic blemish and does not affect the functionality of the fermenter.
Features of this 15 bbl jacketed fermenter:
- 63.375" diameter by 125.5" height to the top pipes
- Design Pressure 15 psi
- 4 stainless steel legs with leveling footpads
- Interior shell: 304 stainless steel
- Exterior shell: 304 stainless steel
- 60 degree cone bottom with 20% head space
- Racking port 1.5" TC butterfly valve and discharge port with 2" TC butterfly valves and clamps and gaskets
- Side manway door, shadowless
- Dual zone dimple cooling jacket with 3/4" NPT Female glycol inlet and outlet
- Polyurethane insulation thickness 1.5" for cooling jacket on side and bottom
- Fully welded exterior shell
- CIP arm and spray ball
- Rotating racking arm
- Vacuum pressure relief valves, relieves pressure at 15 psi and vacuum at 5 psi
- Dry hop port on top of tank
| Weight (lb) | 1500.000000 |
|---|
