Sight Glass - 1-1/2" Tri Clamp
In stock
Catalog
92-15
- Buy 5 for $89.10 each and save 10%
- Buy 10 for $79.20 each and save 20%
$99.00

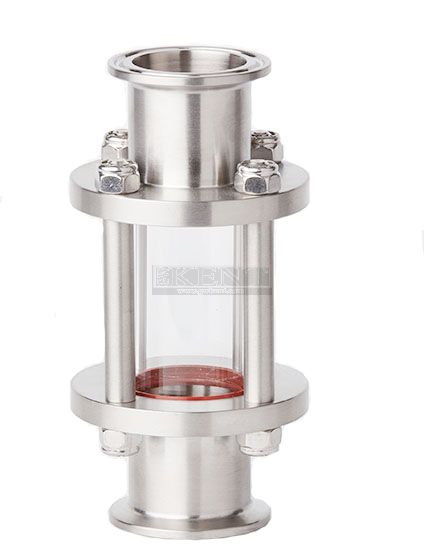

- In-line sight glass with 4 bolts for larger viewing area, with tri-clamp connections. Allows for the ability to visually inspect the product flow in line.
- The total length is 5.75" and the glass itself is 2.5" long.
- Maximum operating pressure is 140 psi and the maximum temperature is 200F, but these assume no thermal shock.
- Made of 304 stainless steel with pyrex glass and silicone gasket.
Material 304 stainless steel
| Weight (lb) | 2.000000 |
|---|---|
| Connection | 1-1/2" TC |
| Retail Price | $0.00 |
