Sight Glass
In stock
Catalog
92-10-1
$99.00

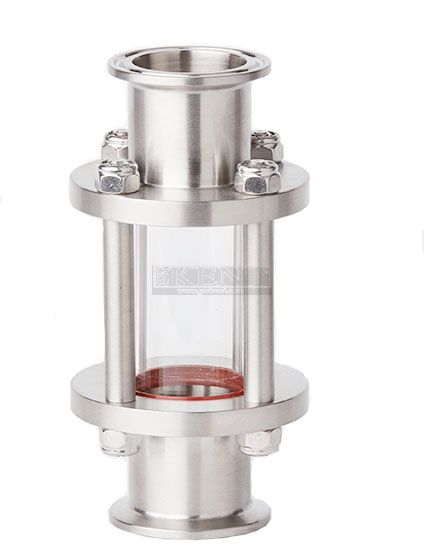

In-line sanitary sight glass with 4 bolts for viewing processing flow, with tri-clamp connections.
• Made of 304 stainless steel with pyrex glass, 3-A.
• Glass Length: 2.5" and Gasket material: silicone
• Temperature: up to 200° F.
| OD Size | Total Length | Glass Length | Max. Pressure | Connection |
| 1" | 5.75" | 2.5" | 140 psi | 1" TC |
| 1-1/2" | 5.75" | 2.5" | 140 psi | 1-1/2" TC |
| 2" | 5.75" | 2.5" | 140 psi | 2" TC |
| 2-1/2" | 7.25" | 2.5" | 120 psi | 2-1/2" TC |
| 3" | 7.25" | 2.5" | 120 psi | 3" TC |
| 4" | 7.25" | 2.5" | 90 psi | 4" TC |
| 6" | 7.5" | 3.86" | 70 psi | 6" TC |
| 8" | 7.5" | 3.86" | 70 psi | 8" TC |
| Weight (lb) | 2.000000 |
|---|---|
| Micron | 10 - 25 micron |
