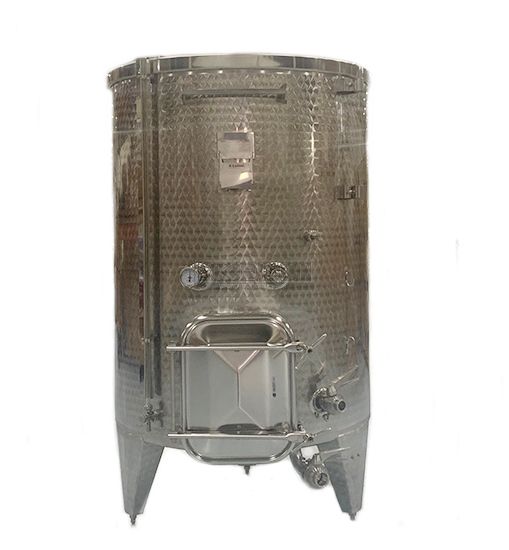

Variable Capacity Slope Bottom Jacketed Wine Tanks (Various Sizes)
Out of stock
Catalog
2741G
Heavy duty wine tank with slope bottom and large square manway door for red wine or fruit processing. Oversized cooling jacket for efficient temperature control.
or
Call Us734-572-1300
| Capacity | Diameter | Height | Lifting Arm | Jacket Surface | Jacket Connection | Valves |
| 1050 L. / 278 gal. | 37.7" | 74" | +14" | 1.1 sq. m. | 1" hose barb | 2 Butterfly |
| 1450 L. / 384 gal. | 44" | 74" | + 15" | 1.4 sq. m. | 1" hose barb | 2 butterfly |
| 2250 L. / 595 gal. | 55.2" | 78" | + 17" | 2.3 sq. m. | 1" hose barb | 2 butterfly |
| 3950 L. / 1045 gal. | 62.8" | 98" | + 19" | 2.5 sq. m. | 1" hose barb | 2 buterfly |
• Lid, inflatable gasket, vent and hand pump included.
• Sanitary thermowell with thermometer and sample valve included.
