Supreme Conical Bottom Tank - No Jacket
Out of stock
Catalog
2742-98
or
Call Us734-572-1300

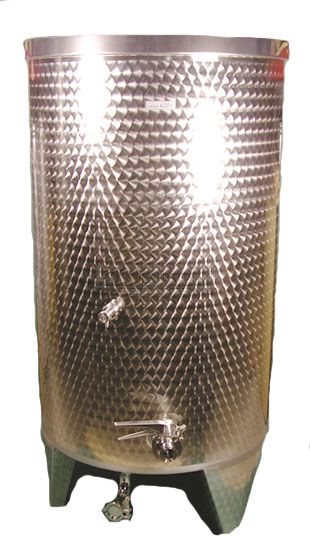

Variable capacity tank with conical bottom for 100% discharge and legs welded to tank.
• Conical bottom with legs welded, designed for 100% discharge.
• Racking port with reinforcing plate & two 1-1/2” tri-clamp butterfly valve.
• Reinforcing stainless steel bar on rim. Lifting arm for 1100 L to 1500 L. tank (add 24" to tank height)
• Premium grade 304 stainless steel, 16 gauge.
• Exterior marble finish, mirror polish EZ clean interior
• Food grade inflatable vinyl gaskets & all parts complete.
• Supreme lid with 3” neck extension and premium air vent.
| Single Wall Variable Cap. Supreme Tank | Diameter | Height |
| 620 L. / 164 gallon | 32" | 60" |
| 1110 L. / 290 gallon | 38" | 71" |
| 1500 L. / 396 gallon | 44" | 71" |
| 2000 L. / 528 gallon | 44" | 91" |
| Weight (lb) | 500.000000 |
|---|
