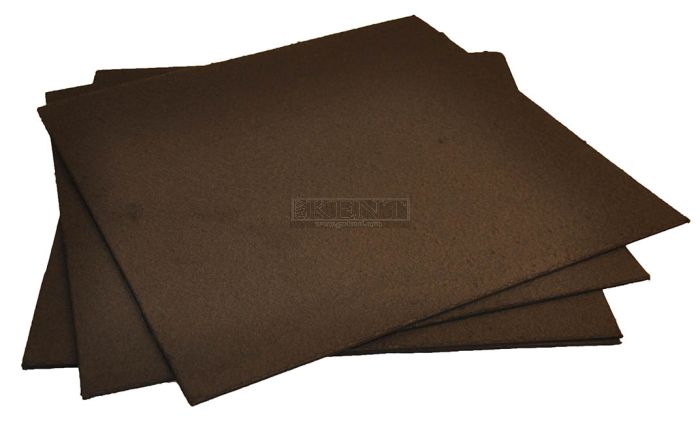

MicroClear® Activated Carbon Filter Sheet

In stock
Catalog
3484-1
$499.00
  • 40 cm X 40 cm filter sheets.
  • 100 sheets per box.
  • Made in the USA by ErtelAlsop.



  • ErtelAlsop has been manufacturing depth filter sheets since the 1920s.  Activated carbon has been used for many years in loose form to remove color and odor from liquids.  In certain applications loose carbon can be replaced with activated carbon filter sheets.



  • Activated carbon is highly porous over a broad range of pore sizes, from cracks and crevices to molecular dimensions.  It is this porosity that provides activated carbon’s unique adsorptive properties.  Generally, activated carbon filter sheets contain surface areas in the range of 500-2000 square meters per gram.  “Activation” refers to the development of the adsorption properties of carbon.  Adsorption occurs when the organic molecules bond to the internal pores of the activated carbon filter sheets. This happens in pores slightly larger than the molecules being adsorbed, which makes it extremely important to match the molecule being adsorbed to the pore size of the activated carbon.



  • Careful blending of filter aids and cellulose fibers with activated carbon yields sub-micronic filtration and adsorptive treatments concurrently.  ErtelAlsop manufactures activated carbon-impregnated filter media in a range of removal ratings and configurations.  This filter sheet is their MC-35 grade which has a particle retention range of 5-9 microns.



  • Applications:  Color Adsorption, Odor adsorption, Color stripping, Decolorization.  Useful in production of Hard Seltzer.

Size: 40 x 40 cm, pack 100 per box.

Micron rating: 5 micron

More Information
Weight (lb) 57.000000
Micron 10 - 25 micron
