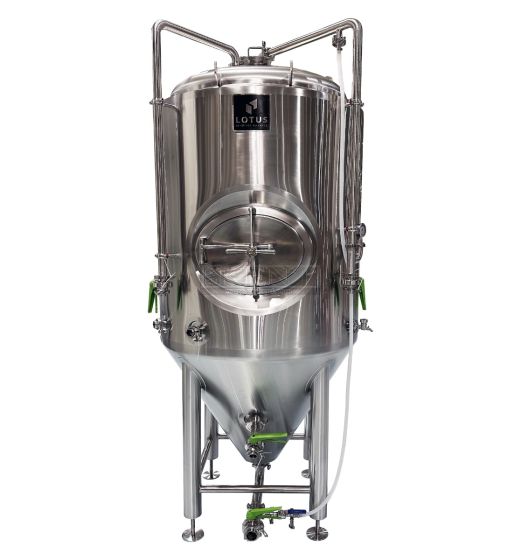

60 BBL Fermenter

• This heavy-duty, workhorse of a fermantation tank will provide decades of service.  The interior is already pickled and passivated.  Expertly welded and polished to the highest degree of sanitary standards.  Comes complete with all the parts you will need to start brewing beer, except solenoid valves and tank temperature controllers.
• This tank is too tall to ship LTL on a pallet, it must ship on a dedicated truck. Please request a freight quote.

Features:

• 85” diameter by 179.5” height to the top pipes
• Design Pressure 15 psi
• 4 stainless steel legs with leveling footpads
• Interior shell: 304 stainless steel
• Exterior shell: 304 stainless steel
• 60 degree cone bottom with 20% head space
• Racking port 1.5” TC butterfly valves and discharge port with 2” TC butterfly valves and clamps and gaskets
• Side manway door, shadowless
• Dual zone dimple cooling jacket with ¾” NPT Female glycol inlet and outlet
• Polyurethane insulation thickness 1.5” for cooling jacket on side and bottom
• Fully welded exterior shell
• CIP arm and spray ball
• Rotating racking arm
• Vacuum pressure relief valve, relieves pressure at 15 psi and vacuum at 5 psi
• Dry hop port on top of tank
