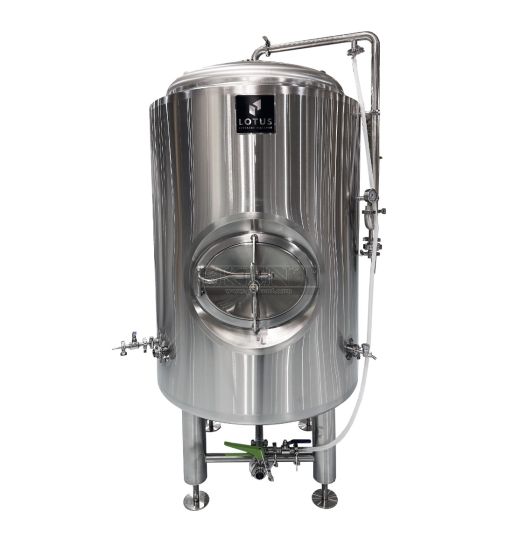

15 BBL Brite Tank Jacketed
In stock
Catalog
487-15
$11,570.00
15 BBL Brite Tank Jacketed is available to buy in increments of 1
- This heavy-duty, workhorse of a brite tank will provide decades of service. The interior is already pickled and passivated. Expertly welded and polished to the highest degree of sanitary standards. Comes complete with all the parts you will need to start brewing beer, except solenoid valves and tank temperature controllers.
Features:
- 57.5” diameter by 95.62” height to the top pipes
- Design Pressure 15 psi
- 4 stainless steel legs with leveling footpads
- Interior shell: 304 stainless steel
- Exterior shell: 304 stainless steel
- Flanged and dished head top and bottom with 20% head space
- Racking port with 1.5" TC butterfly value and discharge port with 2” TC butterfly valve and clamps and gaskets
- Side manway door, shadowless
- Dual zone dimple cooling jacket with ¾” NPT Female glycol inlet and outlet
- Polyurethane insulation thickness 1.5” for cooling jacket on side and bottom
- Fully welded exterior shell
- CIP arm and spray ball
- 12” Carbonation Stone with ball valve
- Vacuum pressure relief valve, relieves pressure at 15 psi and vacuum at 5 psi
