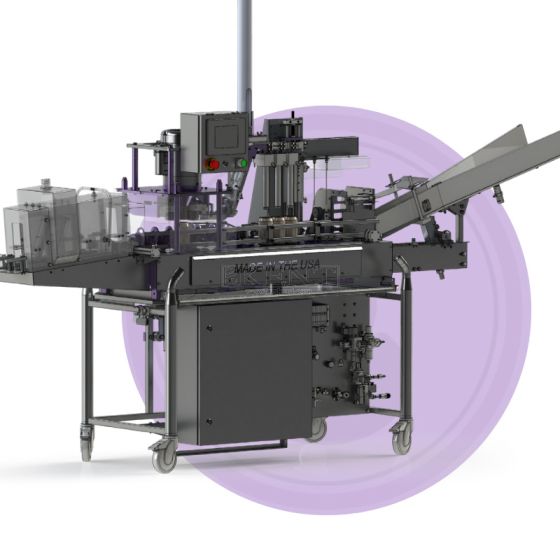

The Gunnison Canning Line (25-30 cpm)
In stock
Catalog
99-20TMM08
$62,487.00
The Gunnison is the most popular canning line built by Twin Monkeys. Its ultra-compact footprint has made it in high demand with mobile canning businesses as well as small and medium-sized craft beverage producers. With options for customization, this canning line can be quickly converted to handle multiple canning diameters and styles.
Canning Line Specifications:
- Throughput: 25-30 CPM
- Can Sizes: 12 oz and 16 oz Standard (parts for additional sizes available upon request)
- Lids: 202 Lids (parts for additional sizes available upon request)
- Dimensions: 52" L x 26" D x 60" H
- Weight: 450 lbs
- Construction: Stainless steel, anodized aluminum, food-grade acetal
- Power: Has both 120V and 230V 1-phase options (50/60hz)
- CO2: 0.5 CFM @ 20 PSI
- Controls Air: 4.3 CFM clean dry air @ 90 PSI
- Beverage Capability: Beer, Wine, Coffee, Kombucha, RTD Cocktails, Soda, Water, THC Infused, CBD infused, Juice
This Canning System is Equipped with:
- Patented Seamer Technology
- Lid applicator with CO2 blanket generator
- Integrated automated tank pressure control
- TPO pickup as low as 20 PPB
- Mobile-friendly with locking casters on a movable cart
- Washdown systems for easy cleaning
- Quick change out between can diameters
Customize this Canning System:
- Auto weigh/fill adjust/reject option
- Integrated date coding
- Infeed options
- Final rinse/dry
- Integrated liquid nitrogen dosing
- Full guarding cage
| 3 BBL | 5 BBL | 7 BBL | 10 BBL | 15 BBL | 20 BBL | 30 BBL | 60 BBL | 120 BBL | |
|---|---|---|---|---|---|---|---|---|---|
|
The Mancos |
3.1 |
3.8 | 4.6 | 5.7 | 7.5 | 9.4 | 13 | ||
| The Eagle | 2.5 | 2.9 | 3.3 | 3.8 | 4.8 | 5.7 | 7.5 | 13 | |
| The Gunnison | 2.5 | 2.9 | 3.3 | 3.8 | 4.8 | 5.7 | 7.5 | 13 | |
| The Cimarron - 5 Head | 2.3 | 2.5 | 2.8 | 3.1 | 3.7 | 4.2 | 5.3 | 8.6 | 15.2 |
| The Cimarron - 10 Head | 2.2 | 2.3 | 2.4 | 2.6 | 2.8 | 3.1 | 3.7 | 5.3 | 8.6 |
| Weight (lb) | 450.000000 |
|---|
