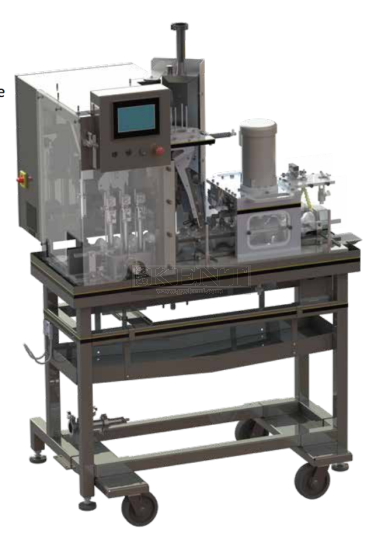

The Compass Canning System

Start small, grow big with the Omni expandable canner. This is the first canning machine combining the best technologies from two top canning line manufacturers: Alpha Brewing Operations and Twin Monkeys Beverage Systems.

Feature:

• Intuitive color touch screen controls with extensive help menus and videos
• 5-step DO reduction
• Automated brite tank pressure control
• Proven patented seaming technology
• Lid applicator with CO2 blanket for under-lid gassing
• Sturdy welded chassis
• Utilities that shut o‑ when not in use

Specs

• Dimensions: 48”L (1220mm) x 36”W (910mm) x 71”H (1800mm), 98”H (2490mm) with lidder
• Cans Per Minute: 25
• Weight: 700 lbs (320 kg)
• Power Requirements: 120V or 230V 1-phase (50/60hz)
• Air: 5.5 CFM @ 90 psi
• CO2 : 1.0 CFM @ 25 psi
• Can Sizes: Slim, Sleek, Standard
• Beverage Capability: Beer, Wine, Co‑ee Kombucha, Cider, RTD, Soda, Water and Juice, THC Infused, CBD Infused
