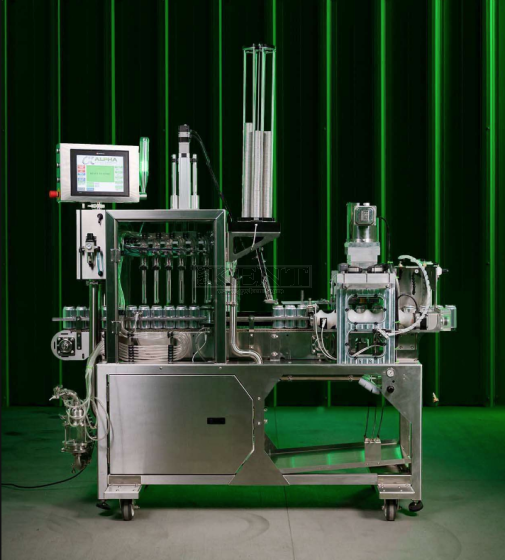

The Cannon II Canning System - 100 cpm
THE PREMIER CHOICE FOR MOBILE CANNERS
Just over 6 feet long and 2 feet wide and 100% mobile, The Cannon is the premier choice for mobile canners. It oers expandability from 50 to 100 cans/minute. No wasted investment, no loss of value, simply grow without growing. Double capacity, same footprint.
DUAL LANE DESIGN: The Cannon’s unique dual lane design provides incredibly low dissolved oxygen levels, smaller footprint, expandability and redundancy.
DOUBLE BARREL FILLER: The double barrel fill nozzle feature places 2 fill tubes into each can. This allows faster filling with less space, less energy, and fewer moving parts.
SMARTFILL SERVO: The vertical motion of the filler is controlled by a servo motor. Utilizing servo technology means precise, adjustable movement, size change with the push of a button, foam control, low energy, no compressed air, and no maintenance.
EASY TO CLEAN: The Cannon features hi-temp tygon tubing and a 316 stainless fill nozzle that allows for high temp, or caustic cleaning during CIP. Even steam cleaning is an option with this system.
CAN SEAMER Seaming is the most critical aspect of any canning operation, ensuring the quality and freshness of your craft beverage. The Cannon is one of the first machines to introduce servo motor technology, which o‑ers precise seam adjustments within a thousandth of an inch possible. Can size changes are fast and easy and all of the grease zerks are easily accessed for routine maintenance.
WEIGH STATION Our patented check weigh station weighs each can prior to seaming. It is designed to enhance your packaging quality control by moving the seamed cans onto a load cell that reliably measures the weight. Cans that meet operator-defined standards continue on, and low fills are rejected automatically. The load cell also allows prevention of over fill to maximize your profit.
- Dimensions: 6”L (1829mm) x 2”W (610mm)
- Weight: Cannon II = 1200 lbs
- Cans Per Minute: Cannon II = Up to 100 (using 12 oz standard cans)
- Power Requirements: 22 Full Load Amps at 220v, 1 phase, 50/60 Hz
- Air: Cannon II = 12 CFM @ 90 psi
- CO2 : Cannon II = 6 CFM @ 40 psi
- Water: 1 gallon/minute rinse consumption
- Can Sizes: Slim, Sleek, Standard • Beverage Capability: Beer, Wine, Coee, Kombucha, Cider, RTD, Soda, Water
