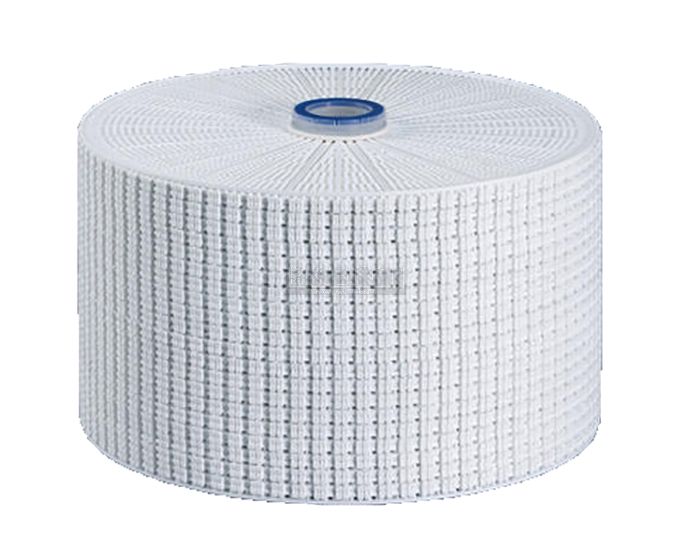

Pall SUPRAdisc II Modules - 16" X100

In stock
Catalog
3496-2
$569.99
  • The Pall SUPRAdisc II filter media is a fully enclosed Lenticular modular filter system.  Designed with new separator technology these discs feature rigid construction with high package density.  Unlike some other lenticular modules, Pall SUPRAdisc filter modules can be back-flushed for multiple re-use when flushed with the optional back-flush plates.
  • Our back-flush plate SKU # 3450-10 and #3450-11.
  • With a lenticular filter the entire process avoids air contact because it is a fully enclosed system.  No dripping like a plate & frame filter, and almost no product loss because you can push the product out of the disc when a filter run is finished by using gas pressure.
  • The up-front cost of a lenticular filter module is higher than plate & frame filter sheets, but over time it is less expensive because of the ability to back-flush and re-use multiple times.
  • Each 16” module provides 5 square meters of surface area, so a lenticular filter gives  filter performance with a small footprint.
  • Set up is quicker and easier than with a plate & frame filter.
  • This particular module is the X100 which has a particle retention range of 1-4 microns.

• Highest structural robustness due to dual drainage plates.

• Interlocking and welded drainage plate.

• Optimized flow distribution upstream and downstream of the filter sheets.

• Filter media is less susceptible to blinding.

• Fully supported filter sheets inhibit the rupturing of filter sheet under back pressure.

• Steam sterilizable at 125 C degree for 30 minutes.

• All plastic components meets USP Class VI and fully traceable by serial number.

More Information
Weight (lb) 35.000000
Size 16" - X100
Micron 10 - 25 micron
Particle Retention 1 - 4 micron
Manufacturer Pall SUPRAdisc II
