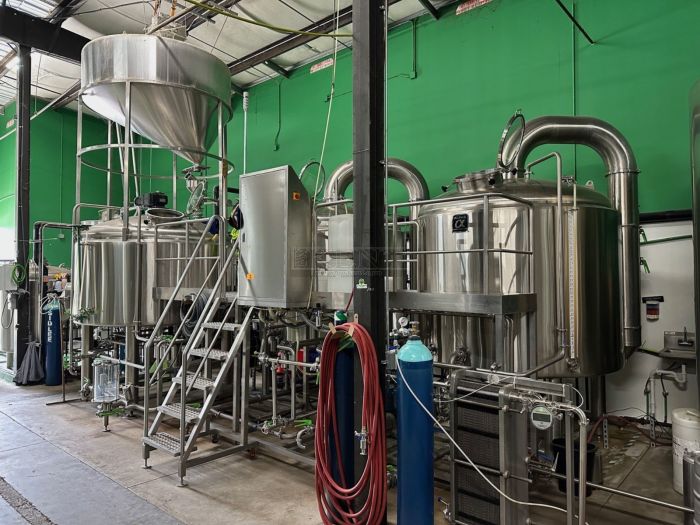

30 BBL 3 Vessel Steam Heated Brewhouse
Originally manufatured by Alpha Brew Ops. in 2017 and in great condition
Brewhouse features:
- 304 stainless steel work platform, stairs and railing
- #4 polished sanitary exterior SS finish
- Stainless vessel material thickness 2mm interior, 3mm exterior, 4mm dome
- Heat Exchanger
- Tri-clamp sanitary fittings
- Sequential in-line fluid valve manifold
UL Certification control system:
- Automatic digital temperature controllers
- Variable pump speed potentiometers
- High efficiency LED interior tank lighting
- LED platform ground effects lighting
- Emergency stop and reset controls
- Motorized steam valve controls
- Manual butterfly valves
Wide Mash / Lauter Tun:
- CB 214: 3 Hp stainless steel washdown craft brew wort pump
- SEW Eurodrive gearmotor propels the rakes and grain plow
- Stainless steel grist hydrator with 4" sight glass
- Hot and cold liquor blending assembly
- Side and bottom steam jackets with individual zone control
- 3" Polyurethane insulation layer
- Multiple CIP spray jets under false bottom
- Multiple wort drains
- Manometer liquid level glass beneath and above false bottom
- Sparge ring and vorlauf assembly
- Vorlauf sight glass on platform
- Tempered glass manway
- Side Man-way for grain dump
- Slotted rotating spray balls - 360 degree coverage
- High efficiency LED interior tank lighting
Brew Kettle
- CB 214: 3 Hp stainless steel washdown craft brew whirlpool pump
- Side and bottom steam jackets with individual zone control
- 12" tri-clamp vent opening with condensate ring and drain
- Side and bottom steam jackets with individual zone control
- 3" Polyurethane insulation layer
- Slotted rotating spray balls - 360 degree coverage
- Tempered glass manway
- High efficiency LED interior tank lighting
- 2" side wort drain 8" above bottom dish
- 2" bottom wort drain behind SS trube dam
- 3" center bottom trube drain
Whirlpool
- CB 214: 3 Hp stainless steel washdown craft brew whirlpool pump
- 12" tri-clamp vent opening with condensate ring and drain
- 3" Polyurethane insulation layer
- Slotted rotating spray balls - 360 degree coverage
- Tempered glass manway
- High efficiency LED interior tank lighting
- Tangential whirlpool inlet
- 2" side wort drain 8" above bottom dish
- 2" bottom wort drain behind SS trube dam
- 3" center bottom trube drain
Mash tun: 89"w x 130"H , 2050Lbs.
Kettle: 85.5"w x 137.5"H , 1808Lbs.
Whirlpool Tank: 85.5"w x 137.5"H , 1808Lbs.
Sold as is. Customer responsible for freight from Canton, Georgia location.
