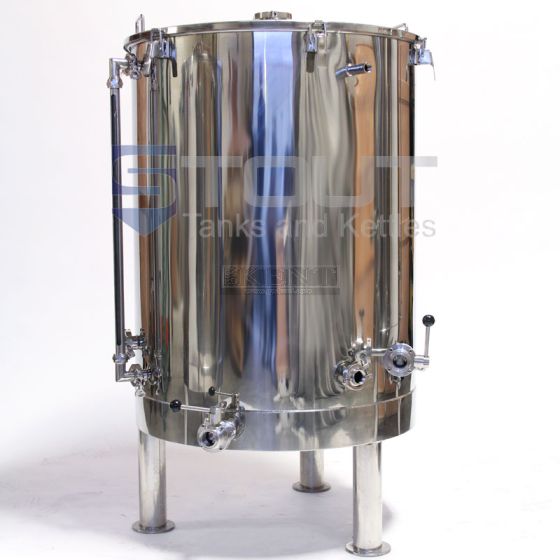

3 BBL Hot Liquor Tank (Electric)
Like all of our other hot liquor tanks, this 3 bbl (120 gallon) electric hot liquor tank will give you the on-demand hot water you need for successful brewdays. Using a hot liquor tank during the brewing process provides the precious hot water that is needed for any brew day and standard clean in place (CIP) practices.
Need to Cost out your 3 bbl brewhouse? Get a Quote on Commercial Beer Brewing Equipment
HL120TW-TI-SG-EL4-LS1 (349)
- Material: Premium virgin 304 stainless steel
- Maximum Capacity: 120 gallons
This 3 BBL (120 Gallon) Electric Hot Liquor Tank for features:
- Thermowell
- Sight Glass
- Four Electrical Elements Ports
- Level Sensor Port and Extra Port
- Clamp down lid with port for spray ball for CIP cleaning
- (2) 1.5" butterfly valves
- Tangential Inlet
- Sloped bottom
- Bottom outlet (edge)
- Water Inlet
- (4) 1.5" TC ports with 1.5" TC x 1" NSP Adapters for electric elements
- (1) 1.5" TC port with 1.5" TC x 1/2" NPT Adapter for a level sensor
Dimensions:
- Dimensions: 30.5" diameter x 52.5"H. Lid adds approx. 4" to height
Need something a little different for your 3 bbl brewery? How about one of our other 3 bbl hot liquor tanks:
- 3 BBL Hot Liquor Tank - with HERMS Coil and Bottom Heat Shield (Direct Fire)
- 3 BBL Hot Liquor Tank - with HERMS Coil (Direct Fire)
- 3 BBL Hot Liquor Tank - with HERMS coil (Electric)
Need to add cellar tanks to your brewery, winery or commercial facility? Here are some options to consider:
- 3 bbl Jacketed Fermenter (with top manway)
- 3 bbl Jacketed Fermenter (with side manway)
- 3 bbl brite tank (jacketed)
Note: We also have insulated hot liquor tanks. Please call us directly to discuss options for your micro brewery (503) 372-9580.
| Weight (lb) | 265.000000 |
|---|---|
| Retail Price | $3,342.00 |
