Butterfly Valve - 1-1/2" Tri Clamp
In stock
Catalog
90-15
$99.99
Butterfly Valve - 1-1/2" Tri Clamp is available to buy in increments of 1
Estimated back in stock mid to late October

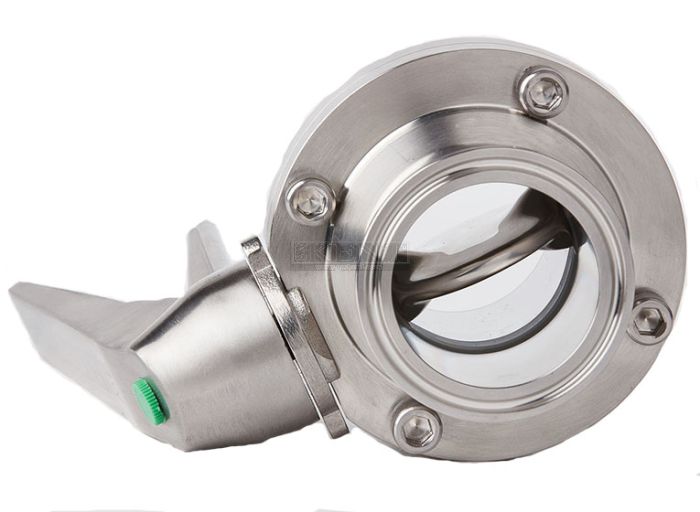

Butterfly valve 1 ½” TC with stainless steel trigger squeeze handle.
Made of 304L stainless steel. Handle is made of sanitary 304L stainless steel just like the valve body and is highly polished to a beautiful mirror finish. The trigger style squeeze handle allows you to set the valve in 12 different positions simply by pulling and turning, providing more flow control options with greater accuracy. The stainless steel handle is more durable than valves with plastic handles.
- Length of the valve body is 3.5”.
- Pressure rating is 140 psi.
- Temperature rating is 15-400F.
- Flow coefficient is 80 CV.
- Valve seat is made of silicone, but replacement seats are available in both silicone and EPDM. Butterfly valves are easy to CIP, (clean in place) and do not trap liquid inside the way ball valves do.
304 stainless steel body with 12 position stainless steel handle and interior silicone valve seat.
| Weight (lb) | 3.500000 |
|---|---|
| Connection | 1-1/2" TC |
| Retail Price | $0.00 |
