Turnkey 100CPM Canning Line (Twin Monkeys)

This full canning line was manufactured in 2022 is very lightly used and in great condition. The setup comes with everything from depalletizing to labeling with additional components that can accommodate both 8 & 12oz sleek can sizes.

Includes:

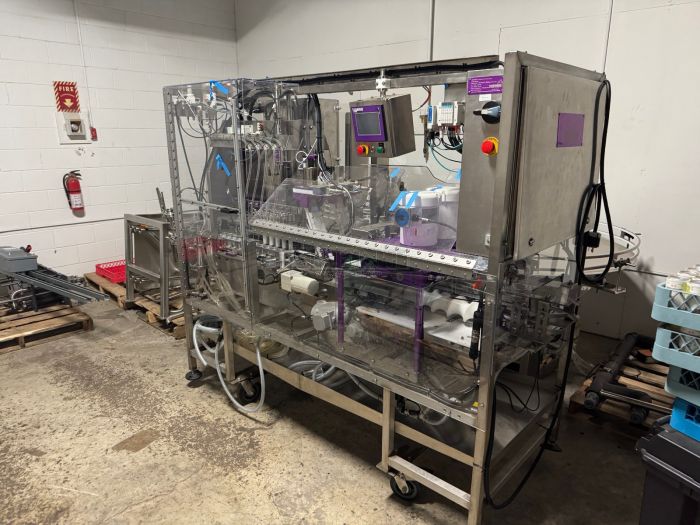

• Cimarron 10 Head Dual Lane Canning machine
• Ska Fabricating Can-I-Bus Depalletize
• Rotary Accumulation Table 60”
• 109” Conveyor
• Twist Rinse Cages - x2 12oz Sleek Inverters + x2 8oz
• Twin Monkeys Steady Date Coder
• Reflow Table 6’
• Video Jet Printer
• Ionized Air Can Rinser w/ 5 Jets and Vacuum with Blower Motor (x2)
• METOP Can Seam Inspector
• Packleader Sleever SL-10
• Packleader Stainless Steel 5M Conveyor
• Packleader 2M Steam Tunnel
• Reimers Steam Boilers 60KW

Cimarron Dual Lane - 100cpm Line Specs:

• Cans Per Minute: 100
• Weight: 950 lbs. (Double Lane) (428.1 kg)
• Fill Heads: 10
• Air: 4.5 CFM @ 90 PSI
• Power Requirements: 208-240V 1-Phase 20 Amps
• CO2: 1 CFM @ 20 PSI

FEATURES

• Reject for poor quality cans (lidless, partial seams, old cans, etc)
• Eco Friendly: Rinse water reuse as well as CO2, water and air dryer
• Shutoff automatically when not in use
• Compact and liftgate friendly
• Automated Tank Pressure Controller to create constant fill and foam
• Patented cam-less wedge seamer: fast, repeatable; low maintenance
• Lid applicator with CO2 blanket generator
• Intuitive operator color touch screen
• CIP/SIP systems for easy cleaning
• Auto-filler raise adjust to ensure proper timing for filler shutoff height
• 5-STEP DO (DISSOLVED OXYGEN)

REDUCTION USING:

• Closed fill tubes that do not re-acquire air between fill cycles
• Pre-fill purge station that clears air out prior to fills
• Short paths from fill to seam
• CO2 blanket generator where lids are placed on foam
• Dial-in foam/fill levels for individual fill head control

Dimensions:

• Cimarron Expandable Filler/Seamer System -79” (2006mm) x 34.4” (873.76mm) x 73.1” (1857mm)
• Ska Can-I-Bus Depalletizer - 66.5"L x 51"W x 109"H
• Video Jet Printer - 13"L x 14"W x 20"H
• Ionized Air Can Rinser w/5 Jets and Vacuum - 131"L x 20"W x 125"H

Sold as is. Customer responsible for freight from Cranston, RI.
