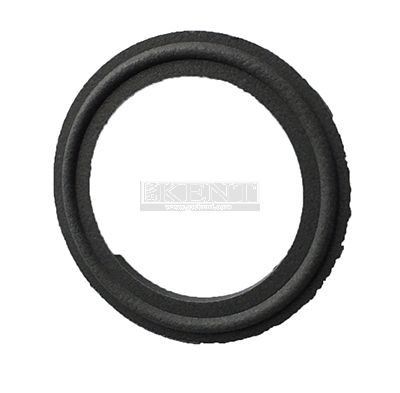

Tuf-Steel Clamp Gasket - 1"

In stock
Catalog
40MPGTS-10
$8.35
  • TC gaskets create a leak-proof seal between clamp fittings.  Hygienic seals are widely used in the Food & Beverage, Biotech, Pharmaceutical, Dairy, Industrial, and Semi-Conductor industries to seal clamp connections in sanitary process piping.  Complies with USDA and 3-A sanitary standards.  The ridged part of the gasket fits into the groove in a TC flange.  A TC clamp then tightens the connection between the two pieces of equipment that are being joined together for a leak-proof and sanitary connection.
  • Tuf-Steel is the strongest gasket in the food, beverage, pharmaceutical and biotech industries.  Composed of a unique proprietary blend of non-pigmented PTFE ( Teflon ) and 316L passivated and atomized Stainless Steel, you can bet on any Tuf-Steel sela for leak-proof performance and outstanding durability.  There is no beating Tuf-Steel in SIP, WFI and hot oil applications because it maintains seal integrity in applications with large temperature variations.  With a 500 steam cycle guarantee, this metal detectable gasket will easily outperform any elastomeric or perfluoroelastomer gasket and will remain in service for extended periods of time.  It is the material of choice when chemical and heat resistance are required.  With minimum creep and cold flow, non-stick, ultra-low absorption, and no pigmentation, Tuf-Steel will not revert, eliminating creep and cold flow, resulting in a leak free seal.  This gasket is tough!
  • Testing and a decade of documented application usage has demonstrated that Tuf-Steel is the choice for perfect surface performance and extended service life.  It is ideal for extreme temperature applications, such as steam, hot oil and friers, where temperatures range from -325F to 550F.  Because of the superior strength and chemical resistance of Tuf-Steel, it can go the distance, significantly reducing maintenance and system downtime by staying in place when cleaning and validating a system.  Tuf-Steel is the choice for perfect surface performance, outstanding durability and extended service life in both SIP ( steam in place ) and WFI ( water for injection ) applications.
  • 500 CIP/SIP cycles guaranteed.
  • Excellent chemical resistance.
  • Excellent expansion/contraction stability with minimal thermal expansion.
  • Non-stick surfaces, non-pigmented, no obstruction of flow, no gasket intrusion into the sanitary tube I.D.
  • Metal detectable.
  • I.D. pharmaceutical finish.
Unique 50/50 blend of non-pigmented PTFE and 316 L. water atomized and passivated stainless steel. A tough gasket as steam in place hygienic seal, excellent chemical resistance. Tuf-Steel gasket eliminates maintenance needs and helps prevent system downtime by eliminating cold flow creep. Ideal for steam pipe connections in both extreme cold (-100 degree F.) and hot conditions (up to 500 degree F.). Metal detectable. Meets USDA, 3-A sanitary standard, pharmacopeia class VI and ASME-BPE standard.
More Information
Weight (lb) 0.200000
Micron 10 - 25 micron
