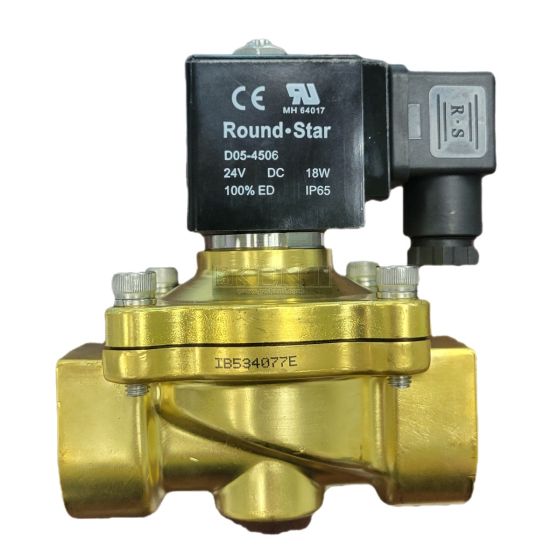

Solenoid Valve, Brass - 1" NPT 24V DC
In stock
Catalog
60361-2
$230.00
Solenoid Valve, Brass - 1" NPT 24V DC is available to buy in increments of 1
- Used to regulate the flow of glycol solution into the cooling jacket of a tank. Used in conjunction with a tank temperature controller (thermostat) which tells the solenoid valve when to open or close. A solenoid valve is an electrically controlled valve. It features a solenoid, which is an electric coil with a movable ferromagnetic core (plunger) in its center. An electric current through the coil creates a magnetic field. This magnetic field exerts an upwards force on the plunger opening the orifice. This is the basic principle that is used to open and close solenoid valves.
- It is recommended to use a screen gasket to make sure no particles get into the solenoid valve, which could cause the valve to jam.
- Brass Body and diaphragm is EPDM,
- End connection is female NPT.
- Operating temperature -40 to 175 F. degree.
- Operating pressure 0 - 90 psi.
- Direct acting, normally closed.
| Weight (lb) | 3.000000 |
|---|---|
| Type | Brass |
| Power | 24 V. DC |
| Connection | 1" NPT |
| Retail Price | $0.00 |
