Portable Indoor 1.5 hp Glycol Chiller 1-phase
Out of stock
Catalog
307-01
$7,795.00
or
Call Us734-572-1300

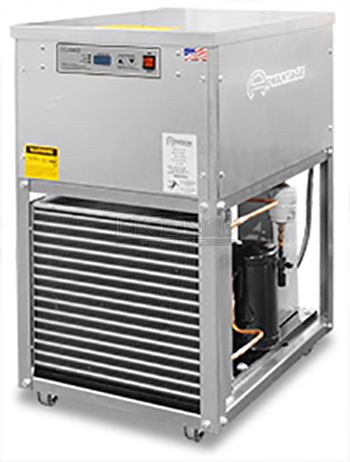

This air-cooled, indoor glycol chiller is designed to provide a glycol fluid temperature of around 25 F, but has an operating range of 20 F to 70 F.
The chiller has 4 wheels for mobility.
Made in the USA by Advantage Engineering.
• Air condensed refrigerating circuit.
• 1.5 hp Compressor (9028 btu), and hermetic compressor charge with R-410A refrigerant
• High & low refrigerant pressure switch and copper immersed coaxial evaporator
• 1-phase, 208 - 230V. 60 Hz. full load amperage 20 amp.
• 4 gallon insulated reservoir with sight tube included.
• Includes 1/2 hp. rotary vane pump (3.6 gpm @ 60 psi) and 4 gallon tank.
• NEMA 1 control cabinet.
• Water in & out connection is 1/2" NPT.
| Weight (lb) | 395.000000 |
|---|---|
| Width | 25" |
| Length | 29" |
| Power | 1-phase |
| Height | 37" |
