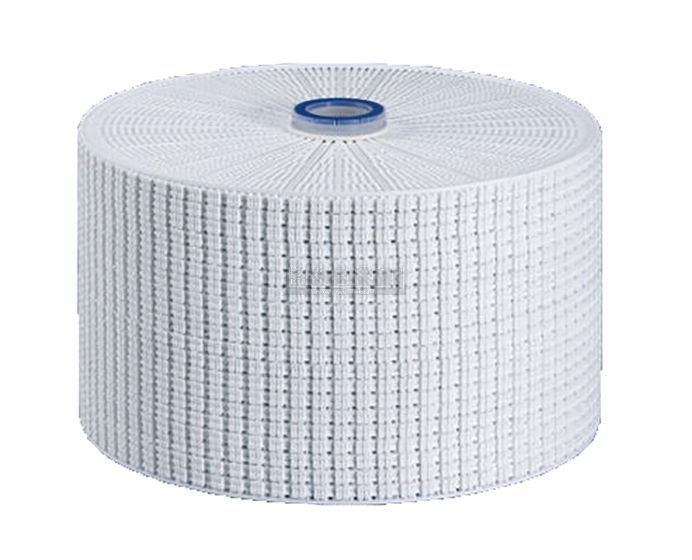

Pall SUPRAdisc II Modules - 12" XEK
In stock
Catalog
3495-3
$359.99
- The Pall SUPRAdisc II filter media is a fully enclosed Lenticular modular filter system. Designed with new separator technology these discs feature rigid construction with high package density.
- Unlike some other lenticular modules these Pall SUPRAdisc filter modules can be back-flushed for multiple re-uses when flushed with the optional back-flush plates.
- Our back-flush plate SKU # 3450-10 and #3450-11.
- With a lenticular filter the entire process avoids air contact because it is a fully enclosed system. No dripping like a plate & frame filter, and almost no product loss because you can push the product out of the disc when a filter run is finished by using gas pressure.
- The up-front cost of a lenticular filter module is higher than plate & frame filter sheets, but over time it is less expensive because of the ability to back-flush and re-use multiple times.
- Each 12” module provides 1.8 square meters of surface area, so a lenticular filter gives a lot of filter performance with a small footprint.
- Set up is quicker and easier than with a plate & frame filter.
- This particular module is the XEK which has a particle retention range of 0.5-0.7 microns.
• Highest structural robustness due to dual drainage plates.
• Interlocking and welded drainage plate.
• Optimized flow distribution upstream and downstream of the filter sheets.
• Filter media is less susceptible to blinding.
• Fully supported filter sheets inhibit the rupturing of filter sheet under back pressure.
• Steam sterilizable at 125 C degree for 30 minutes.
• All plastic components meets USP Class VI and fully traceable by serial number.
| Weight (lb) | 14.000000 |
|---|---|
| Size | 12" - XEK |
| Micron | 10 - 25 micron |
| Particle Retention | 0.2-0.5 micron |
| Manufacturer | Pall SUPRAdisc II |
