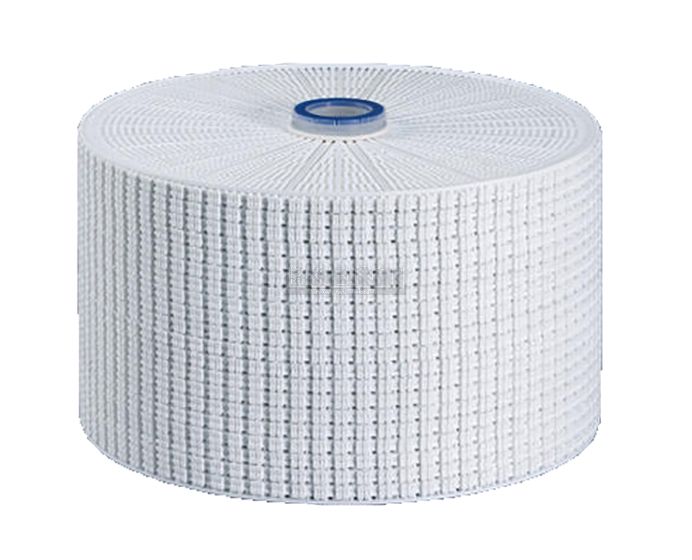

Pall SUPRAdisc II Modules - 12" X200

In stock
  • The Pall SUPRAdisc II filter media is a fully enclosed Lenticular modular filter system.  Designed with new separator technology these discs feature rigid construction with high package density.
  • Unlike some other lenticular modules these Pall SUPRAdisc filter modules can be back-flushed for multiple re-uses when flushed with the optional back-flush plates.
  • Our back-flush plate SKU # 3450-10 and #3450-11.
  • With a lenticular filter the entire process avoids air contact because it is a fully enclosed system.  No dripping like a plate & frame filter, and almost no product loss because you can push the product out of the disc when a filter run is finished by using gas pressure.
  • The up-front cost of a lenticular filter module is higher than plate & frame filter sheets, but over time it is less expensive because of the ability to back-flush and re-use multiple times.
  • Each 12” module provides 1.8 square meters of surface area, so a lenticular filter gives a lot of filter performance with a small footprint.
  • Set up is quicker and easier than with a plate & frame filter.
  • This particular module is the X200 which has a particle retention range of 4-6 microns.

• Highest structural robustness due to dual drainage plates.

• Interlocking and welded drainage plate.

• Optimized flow distribution upstream and downstream of the filter sheets.

• Filter media is less susceptible to blinding.

• Fully supported filter sheets inhibit the rupturing of filter sheet under back pressure.

• Steam sterilizable at 125 C degree for 30 minutes.

• All plastic components meets USP Class VI and fully traceable by serial number.

More Information
Weight (lb) 14.000000
Size 12" - X200
Micron 10 - 25 micron
Particle Retention 4- 6 micron
Manufacturer Pall SUPRAdisc II
