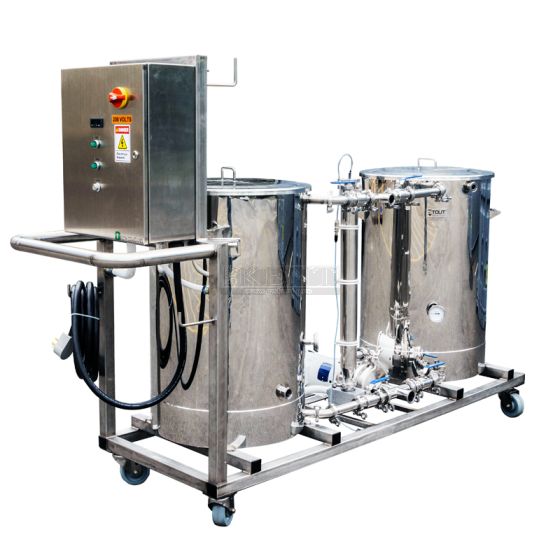

Mobile CIP Cart - 20 Gallon

We have partnered with Brewmation to bring you a mobile CIP system that will increase efficiency during the tank cleaning process.  This mobile clean-in-place system features an integrated in-line heating system that will maintain the caustic temperature to a set temperature, therefore providing a more thorough tank cleaning.

Tanks and Cart include:

• (x2) 20 gallon caustic tanks with bottom outlets
• Cart made out of stainless steel framing to accommodate the two tanks, the heating tube, and the control panel. Cart has four wash down casters for mobility.
• In-line heater for caustic
• Separate sanitizer line to prevent cross contamination with the caustic
• Directional valves for recirculating and transferring to the tanks to be cleaned
• CIP output connection via 1.5” TCCIP return connection via 1.5” tri clamp

Heating System:

• A heating tube is located in the circulation line that contains a 6000W heating element. The electric heater is GFCI protected.

Control Panel (UL and cUL listed as an assembly) includes:

• (x1) Temperature controller (for controlling the recirculation temperature)
• (x1) In tube liquid present sensor / temperature probe assembly (prevents element from running dry)

Power Supply Options: (Choose One)

• 208 / 240V single phase (50A circuit required) – comes with a NEMA 15-50 straight blade plug
• 208 / 240V three phase (30A circuit required) – comes with a NEMA L21-30 twist lock plug

Pump:

• Variable speed 1HP CIP pump with wash down motor mounted on the frame
