In-Line Carbonation/Aeration System

In stock
Catalog
85-45A
$595.00

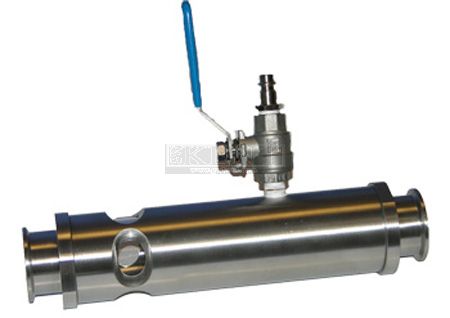

Heavy duty construction in 304L stainless steel.  The two ends are 1.5” TC and a sight glass is built-in for visual inspection of the product flow.  Inside of the main body is a 316” sintered stainless steel “stone” with pores of 0.2 microns to create very fine bubbles.  The stone is 4” long and 1.5” outer diameter.  The gas inlet is a ¼” NPT ball valve with a quick disconnect.

Commonly used on the outlet of the heat exchanger on the way to the fermenter to aerate the wort.  Also used for carbonating between the fermenter and the brite tank.  Best results are attained the longer the distance is between the carb system and the brite tank.

• Built-in carbonation stone 316 Stainless Steel OD 1.5" x 4" length and 2 micron

• Built-in with sight glass for easy visual inspection

• Gas inlet is equipped with a 1/4" NPT ball valve

• Liquid inlet and outlet is 1.5" TC

More Information
Weight (lb) 10.000000
Type Micro-Oxy. System
Micron 10 - 25 micron
