CIP Miniature 316L Stainless Steel Mini Whirling Spray Nozzle

In stock
Catalog
80-90
$229.00

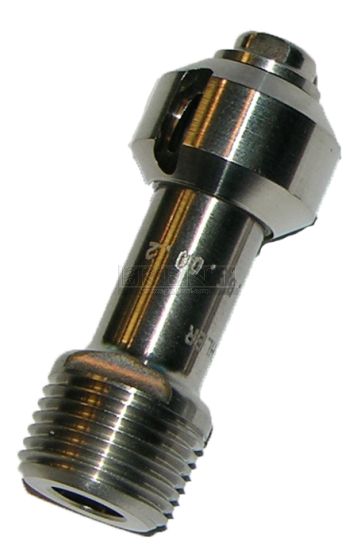

  • This rotating cleaning nozzle is called the “MicroWhirly” and it is made in Germany by Lechler.
  • Made of 316L stainless steel and the internal sleeve bearing is made of PEEK.
  • Made entirely of FDA compliant materials.
  • The MicroWhirly, with effective flat fan nozzles, is licensed for contact with food.
  • Thanks to the robust slide bearing made from PEEK it has a particularly long service life.  It operates in every direction and can be used to clean tanks with a diameter of up to 5.6 feet.
  • It is recommended that a screen of 50 mesh is used to prevent particles from the cleaning fluid from entering into the nozzle.
  • Teflon tape should be used on the threads to ensure a leak-proof seal.
  • Made of 316 stainless steel
  • Coverage of 3 to 5 ft. in diameter at 360 degree.
  • Connection is 3/8" NPT male, nozzle can spin with pressure as low as 5 psi.
  • Operating pressure 20 - 60 psi.
  • Flow rate 2 - 4 gpm.
  • Maximum pressure 70 psi and maximum temperature 250 F. Tolerates a wide range of cleaners and solvents.
  • Nozzle length 2" by width 0.79" (20 mm).
  • More Information
    Weight (lb) 0.500000
    Micron 10 - 25 micron
