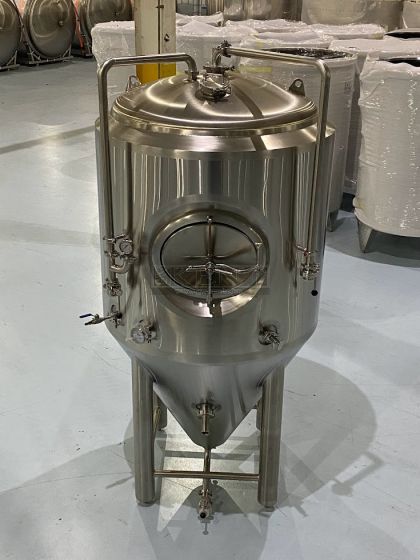

3 Barrel Micro-Fermenter
Out of stock
Catalog
558-03
$6,995.00
or
Call Us734-572-1300
- 3 Barrel Beer Fermenter made of sanitary, mirror-polished 304L stainless steel.
- Oval side manway door and tank is 100% TIG welded.
- Includes all the valves and fittings at no additional cost.
- Comes complete with all fittings, except solenoid valves and temperature controllers.
- Design pressure 15 psi
- 304L stainless steel, interior shell 11 gauge and outer cladding is 16 gauge
- Interior and exterior bright polish finish
- 60 degree cone bottom
- 25% head space in addition to the 3 barrel capacity
- Racking port and discharge port with TC butterfly valve and clamps and gaskets
- Oval manway door
- Dual zone dimple cooling jacket with glycol inlet and outlet
- Polyurethane insulation 2” thick for cooling jackets on side and bottom of tank
- 4 stainless steel legs with leveling foot bolts and pads in 304L stainless steel
- CIP arm and spray ball
- Rotating tank racking arm
- Pico PRV, pressure gauge, thermometer, sample valve
- No dry hop port on top
- Diameter 36” and height is 79” to the top piping
• Design pressure 15 psi
• 4 stainless steel legs with leveling footpads
| Weight (lb) | 450.000000 |
|---|---|
| Diameter | 45" |
| Model | 3 bbl. |
| Pressure | 15 psi |
| Port Size Valve | 1.5" TC Butterfly |
| Jacket | Dimple/insulated/cladding |
| Retail Price | $0.00 |
