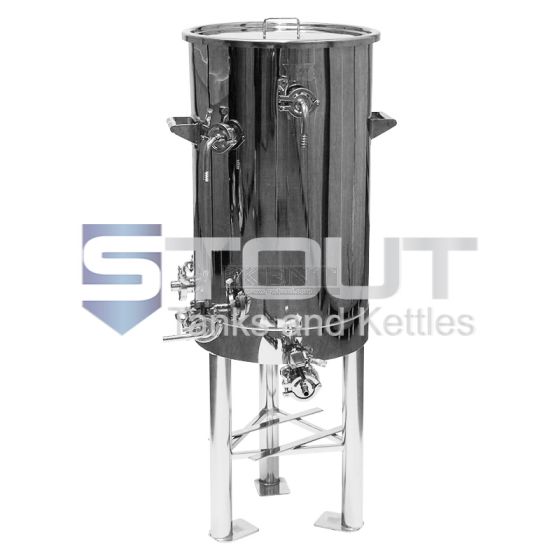

21 Gallon Hot Liquor Tank - on Legs with HERMS Coil (Electric)
In stock
Catalog
ST-2605
Regular Price
$1,294.00
NOW ONLY
$816.00
21 Gallon Hot Liquor Tank - on Legs with HERMS Coil (Electric) is available to buy in increments of 1
This stainless steel 20 gallon hot liquor tank has many professional grade features including a raised stainless steel HERMS coil and a tangential inlet for water recirculation (improves HERMS performance and eliminates thermal stratification).
How Much Does it Cost to Open a Micro Brewery? Get a Quote on Commercial Brewing Equipment.
HL20TW-TI-RHC-LL-EL1-LS1-LEGS (2605)
- Material: Premium 304 virgin stainless steel
- Capacity: 21.6 gallons
This 21 Gallon Hot Liquor Tank features:
- Welded-on legs
- 5/8-in. OD x 44 ft. raised Stainless Steel HERMS coil
- Tangential inlet for water recirculation (improves HERMS performance and eliminates thermal stratification)
- Bottom outlet for full drainage
- 1.5in. TC Port for electric element
- 1.5in. TC port for level sensor with 1/2in. NPT adapter
- Tri-clamp type thermowell
- Laser Level markings on the inside of the tank for volume measurement
- (2) 1.5in. butterfly valves
- (3) 1/2-in.x90 deg. hose barbs
- 1/2-in. straight hose barb, brackets
- (2) 1-in. x 13-in. stainless bars for pump or accessory mounting, clamps/gaskets
- Total dimensions 16-in. diameter x 47.5-in. high. Includes:
| Weight (lb) | 72.000000 |
|---|---|
| Retail Price | $1,294.00 |
