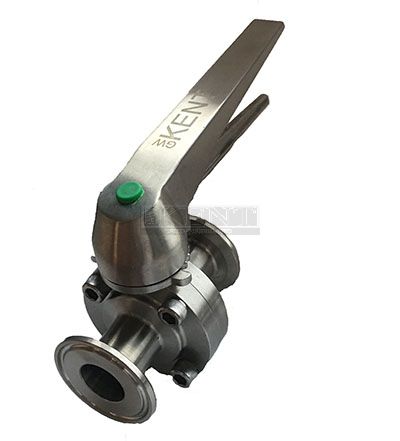

Butterfly Valve - 1" TC
In stock
Catalog
90-10
$94.99
- Butterfly valve 1 ½” TC with stainless steel trigger squeeze handle.
- Made of 304L stainless steel.
- Handle is made of sanitary 304L stainless steel just like the valve body and is highly polished to a beautiful mirror finish.
- The trigger style squeeze handle allows you to set the valve in 12 different positions simply by pulling and turning, providing more flow control options with greater accuracy.
- The stainless steel handle is more durable than valves with plastic handles.
- Length of the valve body is 3.5”.
- Pressure rating is 140 psi.
- Temperature rating is 15-400F.
- Flow coefficient is 23 CV.
- Valve seat is made of silicone, but replacement seats are available in both silicone and EPDM.
- Butterfly valves are easy to CIP, clean in place and do not trap liquid inside the way ball valves do.
• Silicone valve seat.
| Weight (lb) | 2.000000 |
|---|---|
| Micron | 10 - 25 micron |
