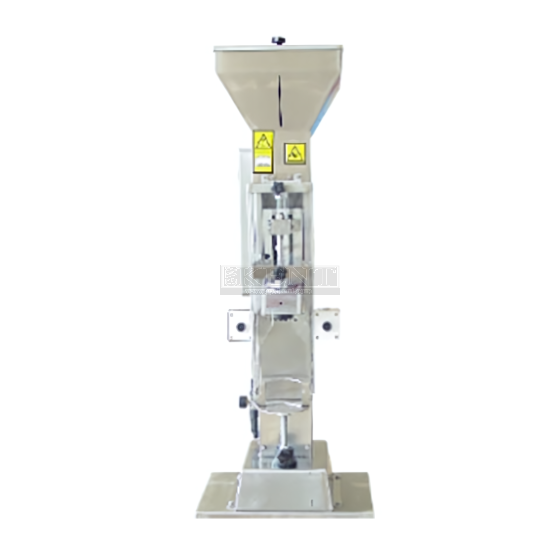

Pneumatic Proline Corker

In stock
Catalog
2015-1
$6,795.00

Pneumatic semi-automatic corking machine made in Italy by Zambelli.  Constructed of 304L stainless steel with a hopper on top that can hold 250-500 corks at a time, depending on size.  The corker can be used with both natural corks and synthetic corks.  The corks are fed into position automatically and then inserted into the bottle bay a corking pin operated by a pneumatic piston.

The corking machine has no motor or electrical requirements.  It needs an air compressor of about 60 gallons, 3 hp, 11.3 or greater CFM, 120-140 psi rate with a pressure regulator.  The air compressor is not included.

It takes approximately 3 seconds to cork each bottle.  The cork compressing jaws are made of stainless steel.  The corker can handle bottles of various sizes.  See manual for parameters.  Dimensions are 13.4” X 15.7” X 52.4”.  It weighs approximately 123 pounds.

* Equipped with stainless steel jaw to compress cork, work with natural cork & synthetic cork (dia. 22 - 26 mm  & max. length 50 mm)

* Hopper hold about 250 -500 corks. Fast and precise activation of corking increase production speed.

* Bench top model with 2 hand lever to activate corking, operate with air compressor.

* Production approximately 600 bottles per hour.

More Information
Weight (lb) 250.000000
Micron 10 - 25 micron
